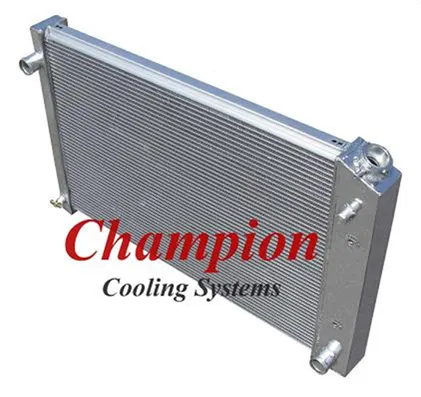

These all aluminum radiators are available in 2-row, 3-row & 4-row variations. Fits all 73-87 C10 trucks, blazers & suburbans.
No additional shipping charge if you add a shroud and fans.
If ordering with fans / shroud, it will not include hardware to mount these items.
4-Row Radiators Come Standard with Polished Tanks.
2-Row Tube Size: 3/4"
3-Row Tube Size: 5/8" or 3/4" (Depending on Model)
4-Row Tube Size: 5/8"
Features:
- All Aluminum Radiator
- Integrated Trans Cooler
- Aircraft Grade 2mm Thick Fittings and Tanks
- Billet Filler Neck
- 3/8" Spaced Tubes
- 14-16 Fins Per Inch
- OEM Style Brass Petcock
- 100% Tig Welded
- 16 lb. Cap Included
Specs:
- Overall Dimension: 20.55" 20.75" H x 33.25" W
- Drivers Side Inlet - Passenger Side Outlet
- Trans Cooler FIttings: 1/2-20 Straight Thread
- 1.5" Hose In / Out
- Saddle Type Mounting
